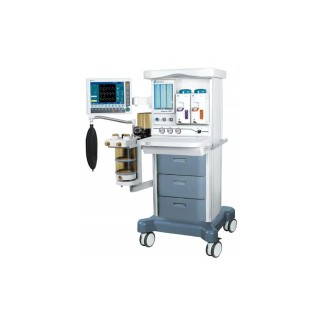

l Anaeston 5000 anesthesia machine offers a high-precision output as low as 20ml.
l It has automatic tidal volume and compliance compensation.
l The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
l It has electronic PEEP function.
l The anesthesia delivery workstation uses autoclavable and latex free components.
l Users can benefit from the tool-free maintenance and cleaning of this equipment.
l The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.
Applications
The anesthesia machine is suitable for inhalational anesthesia delivery for adult, pediatric and neonatal patients.
Specifications of Anaeston 5000 Anesthesia Machine
|
Model |
Anaeston 5000L |
|
Dimension |
810x860x1360 mm (WxDxH ) |
|
Weight |
110 kg |
|
Anesthetic type |
Halothane, Enflurane , Isoflurane , Sevoflurane , Desflurane |
|
Gas supply |
O2+N2O, or O2+N2O+Air |
|
Input pressure |
280~650 kpa (350~400kpa is recommended) |
|
Standard vent. mode |
VCV, PCV, PLV, PSV, SIMV+VCV+PS, SIMV+PCV+PS |
|
Display screen |
12.1" color |
|
Value display (Set and measured) |
Tidal volume, minute volume, respiratory rate, I:E ratio, pressure limit |
|
Graphic display |
P-T, F-T, V-T waveforms |
|
Optional expansion |
Anesthetic gas scavenging system (AGSS) |
Although we offer a wide range of optional devices for Anaeston 5000 anesthesia machine, here is a brief instruction of EEG-based consciousness monitoring expansion-CSM,which help improve inhalational anesthesia quality and cut down the cost greatly.
What's CSM?
CSM is a new small handheld electroencephalogram (EEG) monitor for determining depth and trend of anesthesia. It can be used together with patient monitor, anesthesia delivery system, ceiling supply unit, etc. Stand-alone operation is also available.
The cerebral state monitor can offer you the following benefits
1. Quantitative assessment of consciousness
2. Optimal surgical condition determining
3. Shorter recovery time
3. Less drug usage
4. Lower surgery cost
Features
1. Multi-parameter EEG waveform is displayed.
2. CSM Link Software™ for case documentation.
3. Cerebral State Index (CSI) of 0-100 is displayed on all screens.
4. Rechargeable battery operation is available.
Specifications of Cerebral State Monitor (CSM)
|
Dimension |
114x60x31 mm |
|
Weight |
130g with battery |
|
Display size |
32x17 mm |
|
Classification |
Internal power supply/ Class II, type BF, continuous use |
|
Memory |
Data recording 18 hours |
|
Digital output |
Wireless to RS232 link (ISM 2.4 GHz) |
|
Wireless range |
Up to 10 meters |
|
Work condition |
Temperature 10–40°C/50–104°F |
|
Rel. humidity 30–75% |
|
|
Air pressure 700–1060 hPa |
|
|
|
|
|
Battery |
9V Alkaline or rechargeable NiMH (6AM6/IEC:6LR61/ ANSI:1604A) |
|
Supply current |
25mA (typical) |
|
Battery lifetime: Alkaline |
32h (stand alone) 18h (transmitting wireless) |
|
Battery lifetime: Rechargeable |
12h (stand alone) 8h (transmitting wireless) |
|
Alarms |
with user selectable CSI high/low limit |
|
Artefact rejection |
Automatic |
|
Sensor impedance range |
0-10kOhm / measurement current 0.01μA |
|
EEG sensitivity |
±400μV |
|
Noise |
< 2μVp-p, < 0.4μV RMS, 1–250 Hz |
|
CMR |
>140dB |
|
Input impedance |
>50MOhm |
|
Sample rate |
2000 samples/sec. (14 bits equivalent) |
|
CSI and update |
0-100. Filter 6-42 Hz, 1 sec. update |
|
EMG |
0-100 logarithmic. Filter 75-85 Hz, 1 sec. update |
|
BS% |
0-100%. Filter 2-42 Hz, 1 sec. update |
