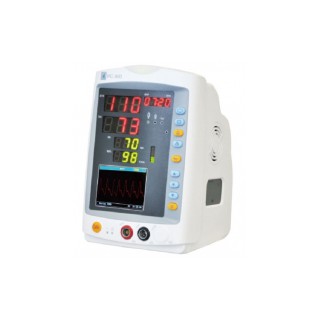

l The patient monitor is designed with a large and bright LED display for the SpO2, PR and NIBP values.
l A high resolution LCD display is available for showing of plethysmogram and system information.
l The patient monitoring system supports accurate NIBP measurement and comes with hardware over-pressure protection.
l Also it supports accurate SpO2 measurement with high sensitivity.
l It has the function of SpO2 trend curve display for recent 12, 24 or 96 hours.
l Measurement of Pulse Rate (PR) and Perfusion Index (PI) are supported.
l The medical monitor allows for storage and review of up to 1200 groups of NIBP measurements.
l Optimized NIBP modes for adult, pediatric and neonatal are provided.
l Audible and visible alarms enhance safety.
l "Nurse Call" function is available.
l The patient monitor has an optional built-in printer for printing waveforms and text information.
l Built-in rechargeable battery ensures convenient use.
Application
Widely applicable in all hospitals and clinics and optimized in adults, pediatric and neonates.
|
SpO2 |
Measuring range |
35%~100% |
|||
|
Low perfusion capability |
0.4%~5% |
||||
|
Accuracy |
Not greater than 3% for SpO2 range from 70% to 100% |
||||
|
NIBP |
Measuring method |
Oscillometric Technique |
|||
|
Measuring range |
0 mmHg~300mmHg |
||||
|
Accuracy |
Maximal mean difference |
±5 mmHg |
|||
|
Maximal standard deviation |
8 mmHg |
||||
|
Measurement range |
Adult |
SYS 40 ~ 255 mmHg |
|||
|
MAP 20 ~ 215 mmHg |
|||||
|
DIA 10 ~ 195 mmHg |
|||||
|
Pediatric patient |
SYS 40 ~ 200 mmHg |
||||
|
MAP 20 ~ 165 mmHg |
|||||
|
DIA 10 ~ 150 mmHg |
|||||
|
Neonate |
SYS 40 ~ 135 mmHg |
||||
|
MAP 20 ~ 110 mmHg |
|||||
|
DIA 10 ~ 95 mmHg |
|||||
