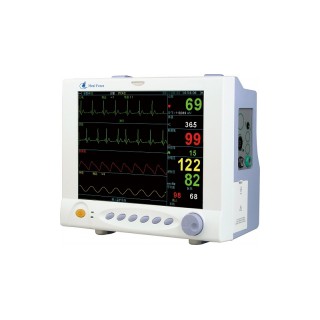

l The Classic-120 multi-parameter monitor uses 12.1 "color TFT display, which allows simultaneous display of 4 curves.
l Visual and audible alarms with individual alarm setting are available.
l Maximum 480 hours trend graphs enable nearly all parameters and trends to be listed.
l The multi-parameter monitor provides accessories for all adult, pediatric and neonatal patients.
l It can store up to 400 groups of NIBP data.
l The patient monitor can be mounted or mounted with rolling stand.
l It can be networked with the central monitoring system
Applications
Our Classic-120 multi-parameter monitor is a cost effective and easy to use patient monitor. It can be used for monitoring of various parameters of SpO2, NIBP, Pulse, TEMP, ECG, and
RESP. Other optional monitoring applications are also available, such as mainstream, sidestream EtCO2 and 1-Channel IBP
Specifications of Classic-120 Multi-Parameter Monitor
|
ECG |
Heart rate display range |
15bpm ~ 350bpm |
|
|
Heart rate display accuracy |
± 1% or ± 2bpm, whichever is greater |
||
|
Sweeping speed |
12.5mm/s, 25mm/s, 50mm/s |
||
|
Sensitivity selection |
×1/2, 5mm/mV ×1, 10mm/mV ×2, 20mm/mV |
||
|
CMRR |
≥ 89dB |
||
|
RESP |
Measuring range |
0rpm~120rpm |
|
|
Accuracy |
±5% or ±2 rpm |
||
|
Alarm limits setting range |
0rpm~120rpm |
||
|
TEMP |
Measuring range |
25.0℃ ~45.0℃ |
|
|
Measuring accuracy |
±0.2℃ |
||
|
Responding time |
≤150s |
||
|
NIBP |
Measuring method |
Oscillometric Technique |
|
|
Measuring range |
0 mmHg~300mmHg |
||
|
Accuracy |
Maximal mean difference |
±5 mmHg |
|
|
Maximal standard deviation |
8 mmHg |
||
|
Measurement range |
Adult |
SYS 40 ~ 255 mmHg |
|
|
MAP 20 ~ 215 mmHg |
|||
|
DIA 10 ~ 195 mmHg |
|||
|
Pediatric patient |
SYS 40 ~ 200 mmHg |
||
|
MAP 20 ~ 165 mmHg |
|||
|
DIA 10 ~ 150 mmHg |
|||
|
Neonate |
SYS 40 ~ 135 mmHg |
||
|
MAP 20 ~ 110 mmHg |
|||
|
DIA 10 ~ 95 mmHg |
|||
|
SpO2 |
Measuring range |
35%~100% |
|
|
Low perfusion capability |
0.4%~5% |
||
|
Accuracy |
Not greater than 3% for SpO2 range from 70% to 100% |
||
|
PR |
Measuring range |
30bpm~240bpm |
|
|
Measuring accuracy |
±2bpm or ±2%, whichever is greater |
||
