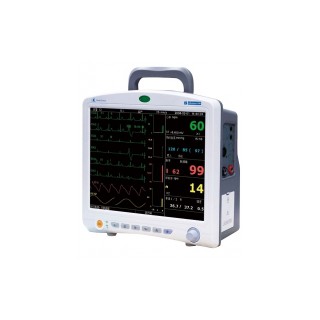

l The Advance-150 multi-parameter monitor uses a 15" color TFT display. Up to 9 curves can be simultaneously displayed.
l It has accessories for all adult, neonatal and pediatric patients.
l Visual and audible alarms with individual alarm setting are available.
l The multi-parameter monitor allows storage of up to 1000 groups of NIBP data.
l Maximum 480 hours trend graphs enable all parameters and trends to be listed.
l The patient monitor can be networked with PC-1000 PRO central monitoring system.
l Compact and lightweight, it can be wall mounted or mounted with rolling stand.
Applications
Our Advance-150 multi-parameter monitor offers a variety of applications. It can be used to measure and monitor parameters of SpO2, NIBP, Pulse, TEMP, ECG and RESP. Optional mainstream, sidestream EtCO2 and 1 or 2-Channel IBP monitoring functions are also available.
Specifications of Advance-150 Multi-Parameter Monitor
|
ECG |
Heart rate display range |
15bpm ~ 350bpm |
|
|
Heart rate display accuracy |
± 1% or ± 2bpm, whichever is greater |
||
|
Sweeping speed |
12.5mm /s, 25mm/s, 50mm/s |
||
|
Sensitivity selection |
×1/2, 5mm/mV ×1, 10mm/mV ×2, 20mm/mV |
||
|
CMRR |
≥ 89dB |
||
|
RESP |
Measuring range |
0rpm~120rpm |
|
|
Accuracy |
±5% or ±2 rpm |
||
|
Alarm limits setting range |
0rpm~120rpm |
||
|
TEMP |
Measuring range |
25.0℃ ~45.0℃ |
|
|
Measuring accuracy |
±0.2℃ |
||
|
Responding time |
≤150s |
||
|
NIBP |
Measuring method |
Oscillometric Technique |
|
|
Measuring range |
0 mmHg~300mmHg |
||
|
Accuracy |
Maximal mean difference |
±5 mmHg |
|
|
Maximal standard deviation |
8 mmHg |
||
|
Measurement range |
Adult |
SYS 40 ~ 255 mmHg |
|
|
MAP 20 ~ 215 mmHg |
|||
|
DIA 10 ~ 195 mmHg |
|||
|
Pediatric patient |
SYS 40 ~ 200 mmHg |
||
|
MAP 20 ~ 165 mmHg |
|||
|
DIA 10 ~ 150 mmHg |
|||
|
Neonate |
SYS 40 ~ 135 mmHg |
||
|
MAP 20 ~ 110 mmHg |
|||
|
DIA 10 ~ 95 mmHg |
|||
|
SpO2 |
Measuring range |
35%~100% |
|
|
Low perfusion capability |
0.4%~5% |
||
|
Accuracy |
Not greater than 3% for SpO2 range from 70% to 100% |
||
|
PR |
Measuring range |
30bpm~240bpm |
|
|
Measuring accuracy |
±2bpm or ±2%, whichever is greater |
||
