With the popularity of monitors in medical institutions and departments at all levels, traditional multi-parameter monitors can no longer meet the increasingly refined needs of each department, and specialized monitors have emerged as the times require. The monitors used in neonatal wards and NICUs also have different functional details and special configuration requirements from those used by ordinary adults.
There is a huge difference between the physiological signs of newborns and adults. If traditional adult monitors are used to measure newborns, it is easy to have inaccurate or unmeasured values, and accurate collection cannot be achieved.
Premature infants have lower blood pressure than full-term infants. In the event of sepsis or cardiac insufficiency, hypovolemia or hypotension are prone to occur. Along with neonatal hyperactivity and crying, it is difficult for traditional blood pressure modules to measure accurately.
After birth, the cardiopulmonary function of the newborn is not perfect, and the physical function is not yet mature, so the traditional impedance method cannot accurately measure the respiration.
To avoid suffocation in a timely manner after birth, early detection and appropriate intervention are required.
Monitoring neonatal blood oxygen saturation can detect neonatal hypoxia early and guide clinical oxygen therapy and ventilation. However, neonatal activities are difficult to control, making neonatal blood oxygen monitoring a difficult task.
Facing the ever-increasing clinical needs of neonatal monitoring, Heal Force listens to and draws on the opinions and suggestions of many experts, and launches neonatal monitors for the weak characteristics of various vital signs of neonates. It can provide accurate data support for the clinical monitoring of neonates and help solve the clinical pain points that are difficult to monitor neonatal signs.
Apollo N1 Series Neonatal MonitorHeal Force Apollo N1 series Neonatal Monitor, continuously upgrade and optimize the monitoring functions of various physiological parameters of neonates, equipped with oxygen concentration monitoring, automatic alarm for asphyxia and self-rescue function modules, is a high-quality partner of the infant incubator in the NICU department. 9 designs specially designed for newborns fully reflect its professionalism and meticulousness, and fully help medical staff to care for newborns.
Adopting the special module for neonatal blood pressure measurement of American Suntech, it can achieve accurate measurement of neonatal blood pressure in the case of premature infants with sepsis or cardiac insufficiency, assisting the doctor to formulate a targeted treatment plan by observing the heart rate changes in the same period and the blood pressure list statistics on the monitoring interface.
Using the American masimo blood oxygen measurement module, it successfully solved the difficult problem that the arterial blood oxygen saturation of neonates could not be accurately measured in the case of body motion and low peripheral perfusion, and won valuable time for clinical treatment.
The apnea self-rescue function can be automatically activated when the newborn has apnea or suffocation. The suffocation self-rescue module is adopted to give the neonatal patient a certain amount of foot stimulation through the vibration of the strap in a mechanical and non-invasive way, so as to avoid frequent apnea in the newborn, so that the newborn can be properly stimulated in the secondary apnea stage, which can be used to earlier discover the signs of respiratory diseases and strive for more opportunities for clinical treatment.
In view of the special physical condition of newborns with abdominal breathing and more body movement, a targeted breathing algorithm is adopted, and the selection of multiple sets of breathing leads can obtain an accurate breathing rate.
Adopt the parameter range suitable for the neonatal stage, preset the neonatal-specific parameter warning range through the software, and cooperate with professional neonatal accessories to obtain accurate measurement data.
oxygen concentrationThrough the oxygen concentration sensor, the oxygen concentration in the infant incubator is monitored in real time, and the trend chart combined with the blood oxygen saturation is provided for comparison, and the time and intensity of oxygen therapy are promptly prompted for control to avoid retinal damage caused by excessive oxygen therapy.
The 112mm wide paper tape printer has a wider page than the 50mm of traditional adult monitors, which is convenient for printing respiratory oxygenogram (CRG) records required for neonatal monitoring. The front of the printing paper tape is output, which is convenient to take and saves the operating space at the same time.

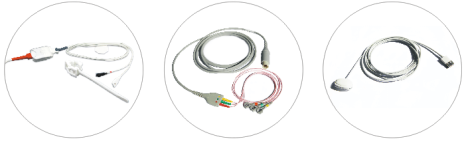

The material used for the leads and straps will not cause skin allergies in newborns.
Through the ZD100 central monitoring system, the NICU central station can be connected to multiple neonatal monitors, the monitoring and alarm information can be displayed in real time, and the two-way control can reduce the workload of patrol nurses. The function of storing single case data for 6 days allows doctors to review the dynamic changes of monitoring data and assist in summarizing treatment effects.

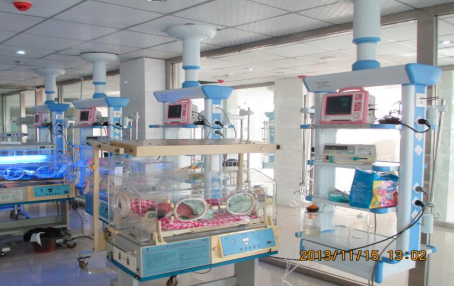

Apollo N1 series neonatal monitor is an important component of Heal Force integrated NICU overall solution. Combined with Heal Force Infant Radiant Warmer, Infant Incubator, blue light therapy device, Medical Ceiling Pendant and other equipments, through the integration of ZD100 central monitoring system, a complete set of integrated neonatal treatment and nursing solutions can be formed, helping improve the overall informatization level of the neonatal department.
