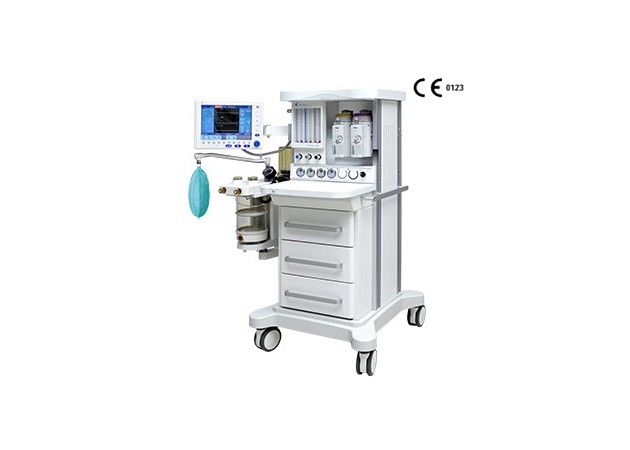

Product NameAnaeston 5000Product Description
- Anaeston 5000 anesthesia machine offers a high-precision output as low as 20ml.
- It has automatic tidal volume and compliance compensation.
- The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
- It has electronic PEEP function.
- The anesthesia delivery workstation uses autoclavable and latex free components.
- Users can benefit from the tool-free maintenance and cleaning of this equipment.
Applications
The anesthesia machine is suitable for inhalational anesthesia delivery for adult and pediatric patients.
Specifications of Anaeston 5000 Anesthesia Machine
Model
Anaeston 5000
Dimension
810x860x1360 mm (WxDxH )
Weight
110 kg
Anesthetic type
Halothane, Enflurane , Isoflurane , Sevoflurane , Desflurane
Gas supply
O2+N2O+Air
Input pressure
280~650 kpa (350~400kpa is recommended)
Standard vent. mode
Manual, VCV, PCV, PLV, PSV, SIMV+VCV/PCV+PS
Display screen
12.1" color
Value display (Set and measured)
Tidal volume, minute volume, respiratory rate, I:E ratio, pressure limit
Airway pressure (Ppeak , Pmean , Pmax , Pplateau , PEEP)
FiO2%, Compliance (ml/cmH2O)
Pressure support level, Inspiratory Window, P-trigger, Inspiratory End
EtCO2 and InCO2 (optional)Graphic display
P-T, F-T, V-T waveforms
P-V, P-F, F-V loops (for compliance, resistance , leakage analysis)
EtCO2 waveforms (when optional EtCO2 module is present) - Anaeston 5000 anesthesia machine offers a high-precision output as low as 20ml.
