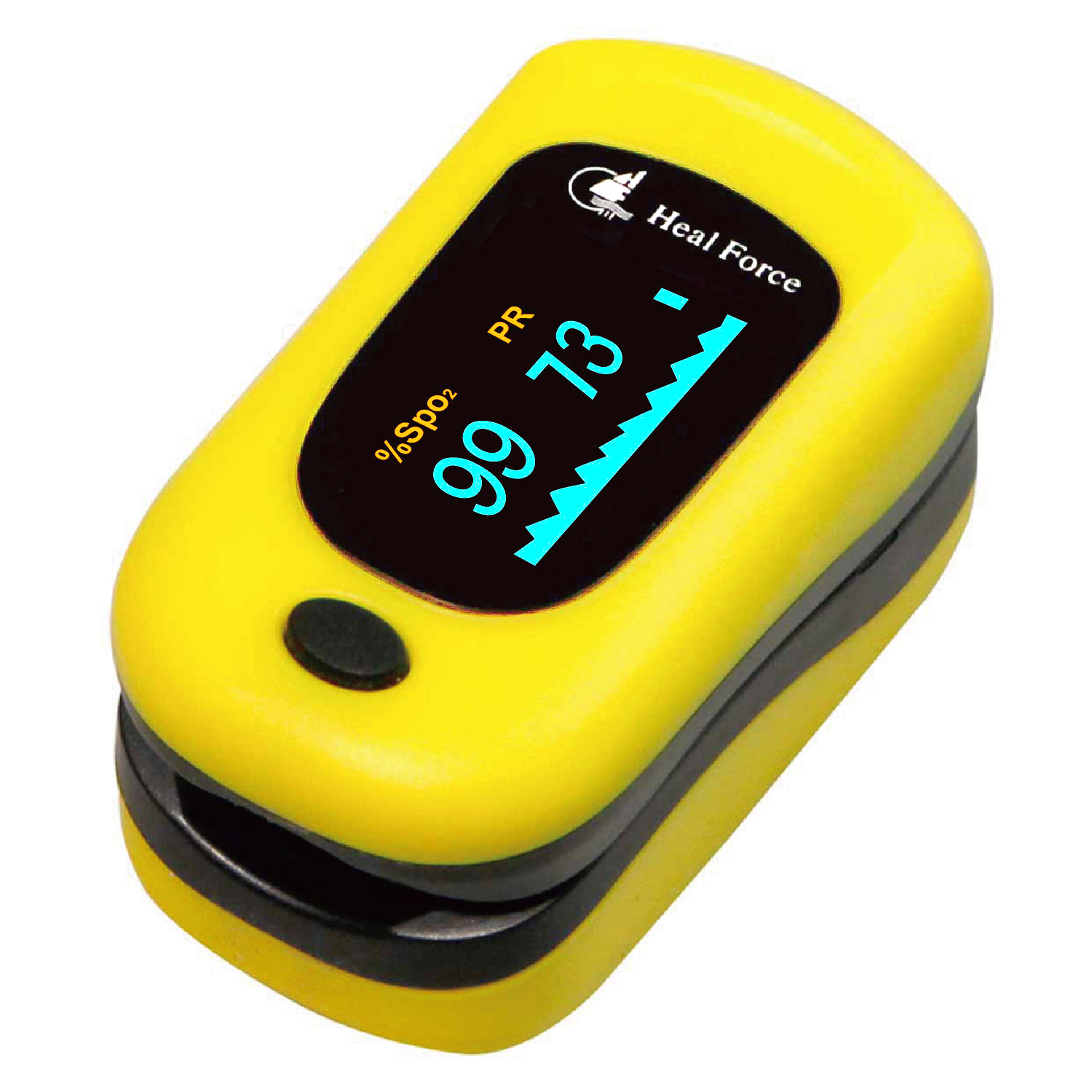

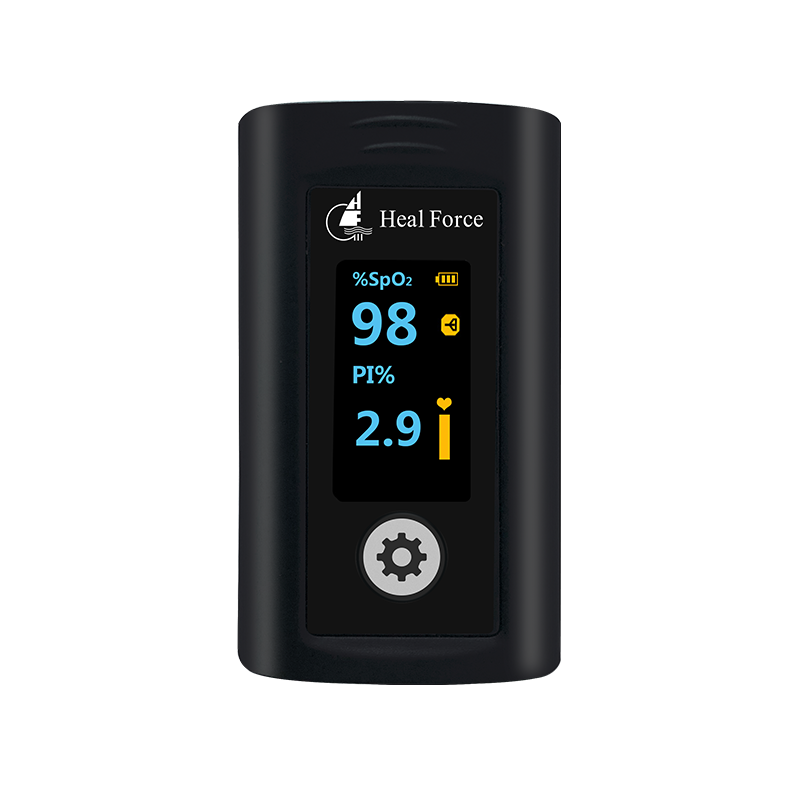

Product NamePrince-100NW Fingertip Pulse OximeterProduct Description
Performance characteristics
1. Lightweight and easy to carry, suitable for family use.
2. It has 0.95 inch color bright OLED display and humanized observation interface. The screen can be rotated in four directions. Used day and night conveniently
3. It can display blood oxygen saturation, pulse rate, blood perfusion index, pulse intensity histogram, pulse volume waveform
4. Intelligent broadcast of blood oxygen saturation, pulse rate and abnormal pulse rate analysis result prompt
5. 12 sets of data storage with memory function
6. With Bluetooth transmission function: APP can be downloaded for real-time monitoring and analysis
7. Equipped with spot measurement and real-time monitoring mode: automatic sound-light alarm triggers when exceeding the limit
8. Intelligent power saving mode: auto power on&off
9. Good performance under low perfusion, strong anti-interference ability
10. Two AAA batteries, can be used continuously for 30 hours
Technical parameters
Blood oxygen saturation (SPO2)
Measuring range: 35%~100% Display range: 35%~99%
Measurement accuracy: 70%~100%: ±2%; 50%~69%: ±3%;
No requirement below 50% (where the percentage sign "%" is the pulse oximetry percentage)
Measurement accuracy: in the 70～100% measurement range, Arms≤3% (For the definition of Arms, please refer to the standard YY0784-2010)
Pulse rate (PR)
Measuring range/display range: 30bpm~250bpm;
Measurement error: ±2% or ±2bpm, whichever is greater
Perfusion Index (PI)
Measuring range: 0.2%～20%
Preset limit value
Prompt setting range when blood oxygen saturation exceeds the limit:
Lower limit prompt: adjustable within the range of 85%~99%, the default is 90%
Reminder range of pulse rate exceeding limit:
Upper limit: 100bpm～240bpm, the default is 120bpm;
Lower limit: 30bpm～60bpm, default 50bpm
Bluetooth module parameters
Transmitting and receiving frequency: 2402MHz～2480MHz
Number of channels: 79
Bandwidth: 1MHz
Modulation method: GFSK
Effective radiation power: <1mW
Anti-interference
Anti-interference ability of natural light: The measured values of pulse oximetry and pulse rate meet the requirements of the above-mentioned standards when used in a natural light environment.
Anti-power frequency interference capability: The pulse oximetry and pulse rate measurement values meet the requirements of the above standards when the light environment is a power frequency light source.
Power supply
Working voltage: d.c.3V (2 AAA 1.5V alkaline batteries)
Current: ≤50mA
